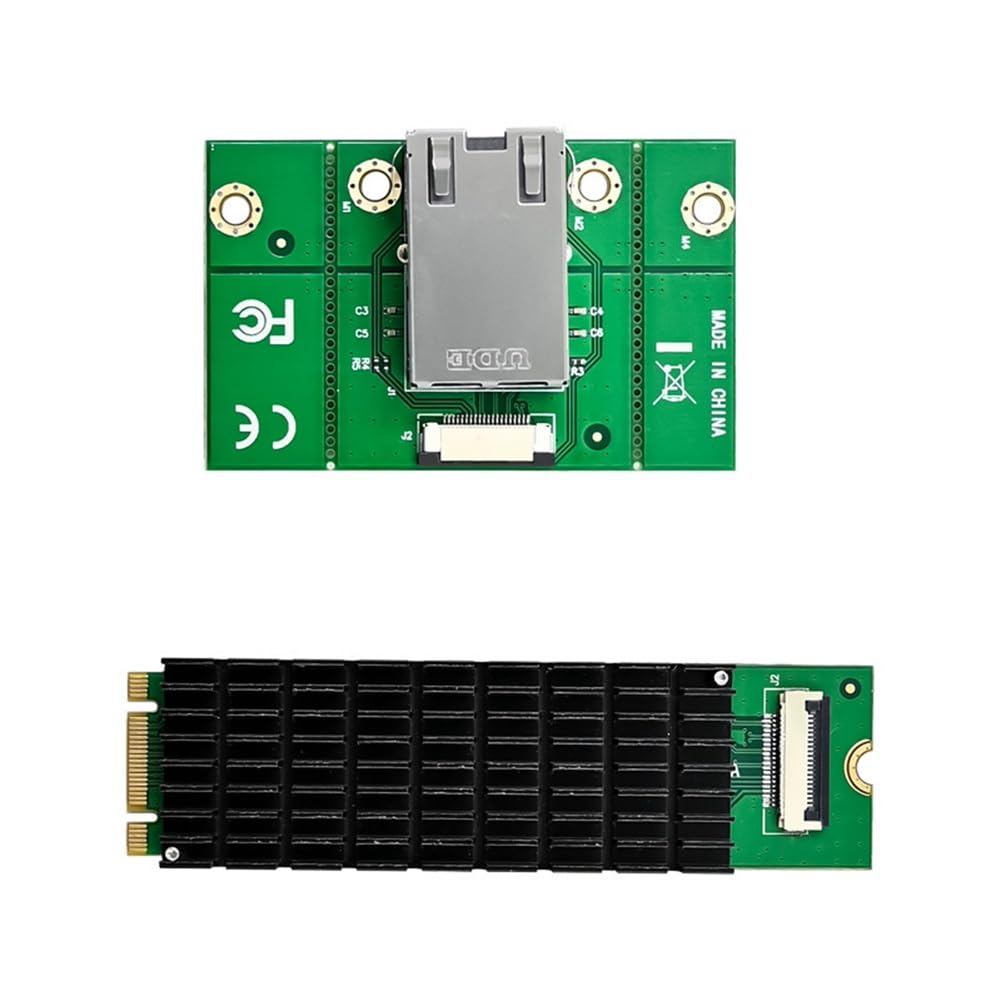

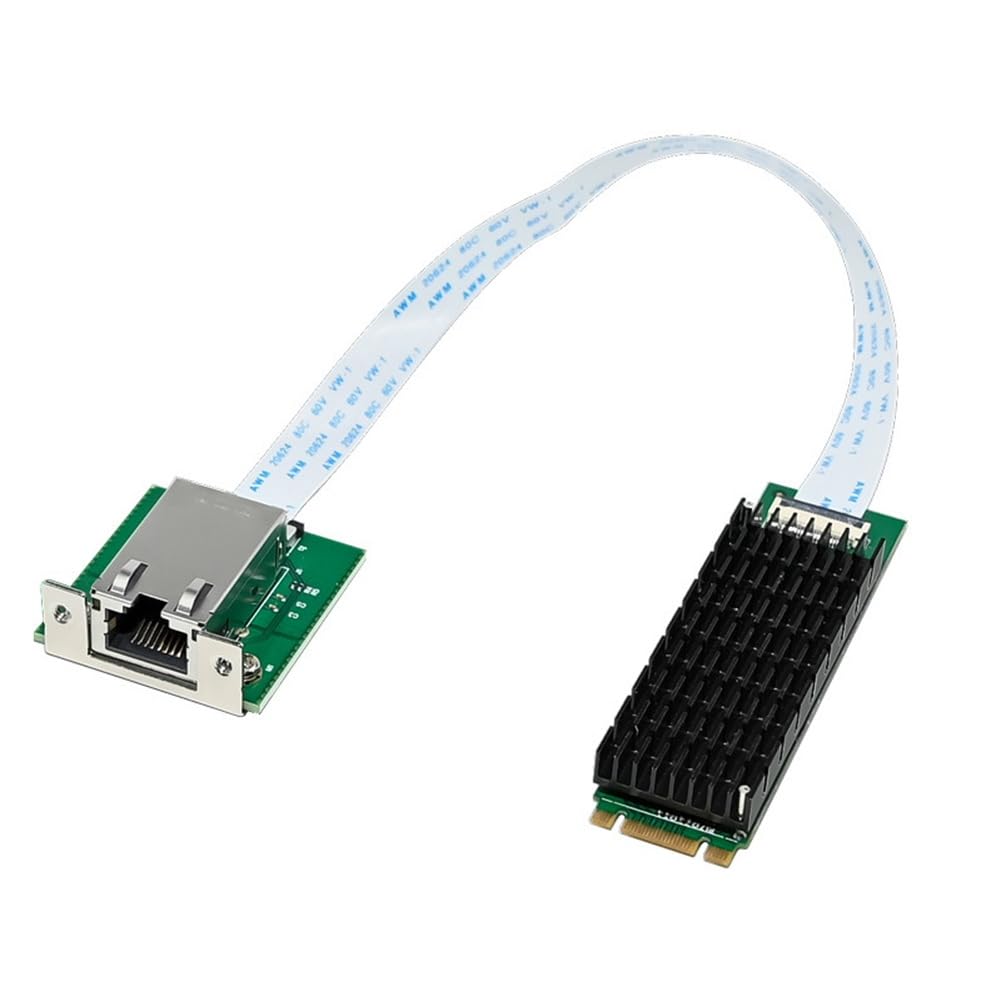

Fxndknjks M.2 B+M AQC107 10GbE Single-Port Network Card - Industrial Grade Server Ethernet Adapter for High-Speed Data Transfer, Cloud Computing & Industrial Control Systems

On-chip high-resolution cable analyzer for advanced cable diagnosticsEnergy Efficient Ethernet (EEE) supportSupport IEEE1588v2 precision time protocolSupports large send offload, receiver scaling (RSS), direct cache access () and headersChecksumming improves network performance and reduces host CPU utilizationWake-on-LAN () power managementSupports IPv4, IPv6 and IPv6/UDP checksum offloadSupports jumbo frames (up to 16kbytes)Quality of Service ()Supports up to eight traffic classes and Data Center Bridging ()Chip processor:Marvell/AQC107Applicable network:10GbR server network cardMain controller:Marvell AQC107Bus type:M.2 B+M KEYMedia interface:1 x RJ45 copper cableTransmission rate:10G/5G/2.5G/1000/100MbpsNetwork topology:10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T / 100BASE-TIEEE 802.3bz, IEEE 802.3, IEEE 802.3x, IEEE 1588, IEEE 802.3az-Energy Efficient Ethernet (EEE)Management functions:IPMI pass-through via SMBus or NC-SI, iSCSI boot, , PXE remote boot, VLAN filteringFirmware environment:Operating temperature:0 - 55°C (32 - 131°F)Storage temperature:-40 - 70 ℃ (-40 - 158 ℉)Storage humidity:90% non-condensing relative humidity at 35°CColour:GreenMaterial:PCBPlease note: Installation Reference picturePackage Contents:1 x Network Card1 x CD1 x Short Iron PieceOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
